Choosing the right Step-up substation transformer is a practical decision with long-term consequences. It raises generated voltage for efficient transmission and supports stable power delivery across industrial, renewable, and utility networks. A poor selection can increase losses, heating, maintenance costs, and outage risks. The decision should begin with verified load data, not a convenient estimate. Review the generator output, operating voltage, frequency, expected growth, and site conditions. Pay close attention to continuous load, short-term overloads, and future expansion plans.

A reliable Step-up substation transformer must match the system’s insulation level, fault-current duty, vector group, impedance, and grounding method. Cooling capacity matters when the unit operates outdoors under intense sunlight or dusty conditions. On-load tap changers may improve voltage control, but they also add maintenance requirements. Check noise limits, fire protection, transport access, spare parts, and the manufacturer’s service record. Factory acceptance tests should cover ratio, winding resistance, insulation, losses, and partial discharge where appropriate. Field commissioning needs equal care.

Numbers can mislead.

A neat spreadsheet cannot replace a site inspection. In my experience, overlooked cable lengths and underestimated ambient temperatures often change the final choice. Engineers should compare total ownership cost, not only the purchase price. Independent review is valuable, especially for high-capacity installations. Still, no transformer is perfect. Design assumptions may change, and some early decisions deserve reconsideration. This guide explains the main evaluation points, helping project teams select a technically sound, maintainable, and dependable transformer for real operating conditions.

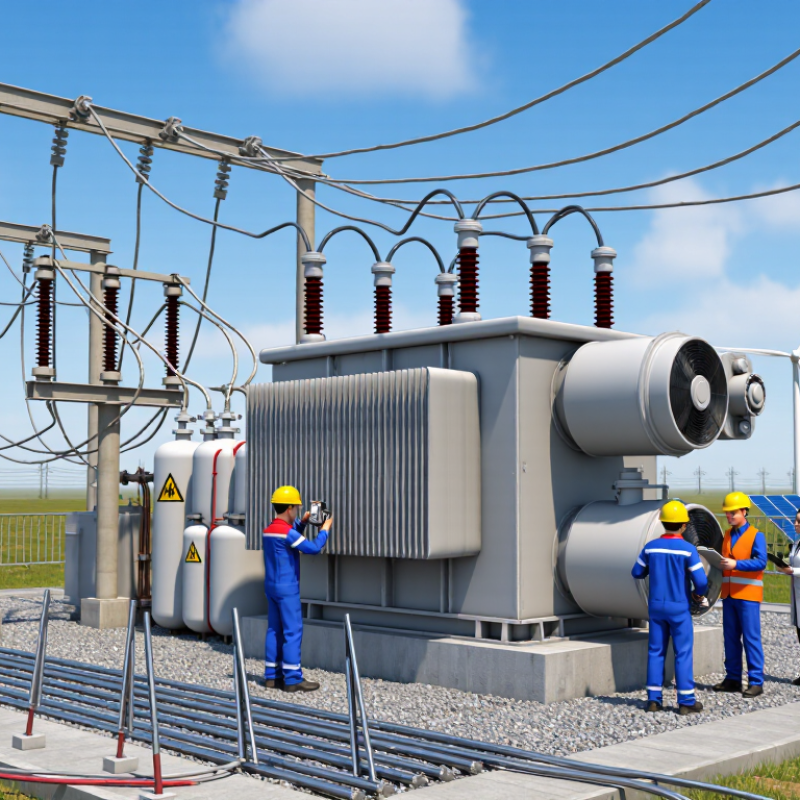

How to Choose a Step Up Substation Transformer?
Table of Contents [Hide]
1 Set Voltage Ratio, MVA Rating, and 0.8–0.9 Power-Factor Demand
2 Check 5–15% Impedance Against Fault Current and Voltage Drop
3 Choose 98%+ Efficiency, Cooling Class, and Insulation/BIL Level
4 Specify ±10% Tap Range, Vector Group, and IEC 60076 Compliance
5 Validate Harmonics, Ambient Limits, and 30–40 Year Service Life

Set Voltage Ratio, MVA Rating, and 0.8–0.9 Power-Factor Demand

How to Choose a Step Up Substation Transformer?

A step-up transformer should match the generator voltage and the receiving network voltage. Confirm both values before selecting the voltage ratio.

For example, a 6.6 kV generator feeding a 33 kV line needs a nominal 1:5 ratio. However, operating voltage can change during the day. An on-load tap changer may help control the secondary voltage. Check the available tap range, insulation level, frequency, and grounding arrangement. A ratio that looks correct on paper may perform poorly under real grid conditions.

MVA rating must reflect actual demand, not only the generator nameplate. At a 0.8–0.9 power factor, the transformer carries more apparent power than the useful load suggests.

Use this formula: MVA = MW ÷ power factor.

An 8 MW load at 0.85 power factor requires about 9.4 MVA. Add a practical margin for motor starting, seasonal loading, cooling limits, and future expansion. Avoid excessive oversizing. It increases cost and may reduce efficiency during light operation. Short-circuit impedance also matters because it affects fault current and voltage regulation.

Tips:

Request measured load data when possible. Review daily demand curves, not just peak records. Check harmonic content from drives and converters. Confirm whether the 0.8–0.9 power factor is lagging or corrected. A capacitor bank can change operating conditions. This detail is often missed. Ask for temperature-rise data, guaranteed losses, tap settings, and routine test records. Finally, have the protection engineer verify relay coordination before approval. Some designs still need revision after the first system study.

Check 5–15% Impedance Against Fault Current and Voltage Drop

Choosing a step-up substation transformer requires more than matching voltage and kVA. Impedance often determines whether the design remains safe during faults and stable during normal operation. A common range is 5–15%. Lower impedance usually permits higher fault current. That may improve voltage regulation, but it can exceed switchgear interrupting ratings. Higher impedance limits fault current, yet it can increase voltage drop during heavy loading.

Compare the selected impedance with the calculated fault current at the transformer terminals and downstream buses. Use the transformer’s rated current, source strength, motor contribution, and protection settings. A useful estimate is fault current equal to rated current divided by per-unit impedance. For example, a 10% impedance gives roughly ten times rated current under an ideal fault. Real networks are less tidy. Cable length, resistance, and source impedance reduce the actual value. They still matter.

Tips: Check voltage drop at the worst operating condition, not only at rated load. Review motor starting, harmonics, tap positions, and future capacity. Ask whether the lower fault current justifies poorer voltage regulation. A neat 10% choice can still be wrong. I would verify the result with short-circuit and load-flow studies, then confirm protection coordination with a qualified engineer. Field measurements after energization may reveal assumptions that looked correct on paper. Poor power factor can worsen voltage drop, even when the impedance percentage appears acceptable.

Choose 98%+ Efficiency, Cooling Class, and Insulation/BIL Level

When choosing a step-up substation transformer, begin with efficiency at the actual load profile. A 98%+ rating is useful, but it may describe one test condition. Review both no-load and load losses. A transformer operating at 40% load can waste energy differently from one operating near full capacity. The U.S. Department of Energy’s 2024 distribution transformer rule estimates 3.6 quadrillion Btu in energy savings over 30 years. This highlights why small efficiency differences matter across long operating periods.

Cooling class should match the site’s heat, altitude, and load cycle. ONAN cooling suits many moderate-duty installations. ONAF adds fans when continuous output rises. Check temperature-rise limits, fan redundancy, noise, and maintenance access. IEEE and IEC transformer guidance emphasize thermal performance and insulation coordination. For insulation, select the BIL level according to system voltage, lightning exposure, switching surges, and grounding design. Higher BIL is not automatically better. It can increase cost and physical size. Incorrect assumptions remain a common engineering weakness.

Tips: Ask for guaranteed losses at several load points, not only peak efficiency. Confirm BIL values against IEC 60076 or IEEE C57 requirements. Request a thermal study for summer conditions. Also inspect the installation drawings. Cable length, ventilation, and elevation can quietly change real performance. I would not accept “98% efficient” without seeing the test basis, power factor, and tolerance. Performance claims need context.

Specify ±10% Tap Range, Vector Group, and IEC 60076 Compliance

How to Choose a Step Up Substation Transformer?

Specify ±10% Tap Range, Vector Group, and IEC 60076 Compliance

A step-up transformer must match the generator, grid, and operating profile. Specify a ±10% tap range when voltage fluctuations require practical control. Confirm whether the taps are off-circuit or on-load. Off-circuit taps need isolation before adjustment. On-load tap changers support live voltage regulation, but they add maintenance and control requirements.

Do not select a vector group from habit. The phase displacement affects parallel operation, protection settings, and harmonic behavior. For example, Dyn11 may suit some distribution interfaces, but it is not universally correct. Check the utility connection, neutral grounding, and phase sequence. I have seen projects delayed because the transformer drawing showed the right ratio but the wrong clock position.

Require compliance with the applicable IEC 60076 series. The specification should cover dielectric tests, temperature-rise limits, short-circuit withstand, noise, and routine inspection. Request certified test records, not only a compliance statement. Review impedance tolerance carefully; excessive impedance can reduce fault current, while low impedance may increase mechanical stress. Oil level, bushing clearances, enclosure sealing, and transport restraints also deserve attention. These details are easy to overlook. A better design review includes actual site altitude, ambient temperature, cooling airflow, and future load growth. That last estimate may still be imperfect, so document its assumptions.

How to Choose a Step-Up Substation Transformer

A practical specification should define the tap range, vector group, and applicable standard. The chart uses a 110 kV rated high-voltage winding with five reference tap positions across a ±10% range. Tap positions are normally selected to compensate for system-voltage variation.

  • Tap range: ±10% provides reference points from 99 kV to 121 kV on a 110 kV winding.
  • Vector group: Dyn11 is a common distribution and substation arrangement, but the final choice must match system earthing, phase displacement, and parallel-operation requirements.
  • Standard: IEC 60076 covers power-transformer requirements including ratings, insulation, temperature rise, tests, and performance verification.

Validate Harmonics, Ambient Limits, and 30–40 Year Service Life

How to Choose a Step Up Substation Transformer?

A 30–40 year service target begins with site data, not a catalogue rating. IEC 60076-1 defines normal conditions up to 40°C ambient, 30°C daily average, and 20°C annual average. A substation beside a furnace or paved yard may exceed these limits. Record hourly temperatures, altitude, solar exposure, and ventilation before selecting insulation levels. Small oversights become permanent thermal stress.

Harmonics deserve direct measurement. IEEE C57.110 provides methods for evaluating transformer capability under nonsinusoidal load currents. Capture current distortion, dominant harmonic orders, and operating load profiles. A transformer feeding variable-speed drives may experience higher eddy-current losses than its fundamental kVA suggests. Ask for loss calculations at the actual spectrum. K-factor alone can mislead. It is not a substitute for system measurements.

IEEE C57.91 and IEC 60076-7 link loading, hot-spot temperature, and insulation aging. Specify a hot-spot calculation, not only top-oil temperature. Review emergency loading hours, cooling-stage control, moisture history, and dissolved-gas monitoring access. Good maintenance records can protect life expectancy. Poor records cannot. A 40-year projection may also be optimistic when harmonic loading, repeated overloads, or coastal contamination are ignored. Require factory test data, guaranteed losses, temperature-rise results, and a documented aging model. Then challenge the model with site conditions.

How to Choose a Step Up Substation Transformer? - Validate Harmonics, Ambient Limits, and 30–40 Year Service Life

Selection Dimension Recommended Validation Data Typical Engineering Values or Limits Why It Matters for 30–40 Year Service Acceptance / Design Action
System voltage and insulation level Confirm primary and secondary line-to-line voltages, frequency, grounding method, switching-surge exposure, lightning exposure, and required basic insulation level. Common utility and industrial systems use 50 or 60 Hz. Insulation levels must be selected from the applicable IEC or IEEE voltage class and installation conditions. Incorrect insulation coordination can cause premature dielectric failure even when the transformer is thermally adequate. Require a documented insulation-coordination study and factory dielectric-test schedule before approval.
Rated power and future loading Provide present load, projected load growth, load factor, emergency loading requirement, motor starting duty, and renewable or converter-based generation profiles. Select the continuous rating from the maximum expected operating duty, with a documented margin rather than an arbitrary oversizing percentage. Emergency ratings must be separately stated. Persistent overloading accelerates insulation aging; excessive oversizing can reduce efficiency and increase inrush-related problems. Use a load-flow and contingency study. State continuous, short-time emergency, and overload durations independently.
Impedance and fault duty Check allowable voltage drop, upstream and downstream short-circuit levels, generator contribution, motor starting current, and protection-clearing times. Transformer impedance is project-specific. A higher impedance reduces fault current but increases voltage drop; a lower impedance does the opposite. Fault stress, mechanical forces, and repeated voltage disturbances can damage windings and weaken insulation systems. Verify impedance tolerance, short-circuit withstand, and coordination with protective-device clearing times.
Harmonic current spectrum Measure or model individual harmonic currents, total harmonic distortion, phase balance, neutral current, converter pulse number, and operating scenarios. Evaluate at the point of common coupling using the applicable power-quality standard. Do not rely on total harmonic distortion alone; individual orders and current magnitude are also required. Harmonics increase eddy-current loss, stray loss, hot-spot temperature, audible noise, and neutral or tank heating. Request a harmonic study covering normal, minimum-load, maximum-load, and contingency conditions.
Harmonic derating and K-factor Determine the transformer loss contribution from harmonic currents and verify whether the design uses reduced flux density, reinforced clamping, or harmonic-duty construction. K-factor or equivalent harmonic-loss evaluation must be calculated from the actual spectrum. There is no universal derating percentage that applies to every installation. A transformer that passes fundamental-frequency loading may still exceed its winding or structural temperature limits under nonlinear loading. Require guaranteed temperature-rise and loss values for the specified harmonic spectrum, not only for a sinusoidal test current.
Ambient temperature Document minimum and maximum ambient temperature, daily average, annual average, solar radiation, altitude, enclosure effects, and ventilation conditions. A commonly used reference condition for liquid-immersed transformers is 40 °C maximum ambient, 30 °C average over 24 hours, and 20 °C annual average; project standards may differ. Higher ambient temperature leaves less thermal margin and increases insulation aging rate. Apply the selected standard’s correction or derating method and obtain written confirmation of the guaranteed temperature rise.
Altitude and cooling performance Provide installation elevation above sea level and site air density. Confirm whether radiators, fans, pumps, and control panels are exposed to reduced cooling capacity. Above the altitude limit stated by the applicable standard, dielectric clearances and thermal performance may require correction. The exact correction depends on the design and standard. Insufficient cooling at altitude can create chronic hot spots and shorten paper or solid-insulation life. Include altitude-specific dielectric and temperature-rise calculations in the design review.
Temperature-rise and hot-spot limits Review top-oil rise, winding average rise, calculated hot-spot temperature, fiber-optic or equivalent monitoring, and alarm/trip settings. Typical liquid-immersed designs use a 65 °C winding average temperature rise under common standards, but the specified standard, insulation system, and site conditions control the final value. Hot-spot temperature is a primary driver of accelerated insulation aging and should be assessed under harmonic and emergency loading. Require a thermal model with hot-spot results for every critical operating scenario and verify sensor locations.
Cooling class and redundancy Compare natural and forced cooling stages, fan or pump redundancy, control-power reliability, automatic changeover, and loss-of-cooling alarm functions. Cooling designations vary by construction; common liquid-immersed classifications include ONAN and ONAF. The continuous rating for each cooling stage must be stated. A failed fan, pump, or control circuit can reduce capacity and cause overheating before an outage is recognized. Specify N+1 cooling equipment where the operational risk justifies it and require functional testing of alarms and automatic staging.
Tap changer and voltage regulation Define no-load or on-load tap changer type, voltage range, step size, control deadband, number of operations, fault-current duty, and maintenance access. Typical on-load tap changer ranges are approximately ±10% in 1.25% steps, but the required range depends on the system voltage study. Frequent operations, contact wear, and poor voltage control can increase maintenance needs and system stress over decades. Match the tap range to actual voltage variation and require operation-count monitoring, oil testing, and accessible maintenance provisions.
Insulation system and moisture control Review paper or solid insulation type, moisture-management method, oil preservation system, sealing arrangement, nitrogen or conservator design, and factory drying records. Moisture significantly reduces dielectric strength and increases aging. Acceptance limits must follow the selected standard and maintenance program. Moisture, oxygen, and elevated temperature interact to accelerate cellulose degradation and reduce mechanical strength. Require factory moisture control, leak testing, oil-quality documentation, and a condition-based maintenance plan.
Efficiency and lifetime operating cost Compare no-load loss, load loss, auxiliary power, expected load profile, energy price, and carbon-cost assumptions. No-load loss is present whenever the transformer is energized; load loss varies approximately with the square of current and increases with harmonic current. Over 30–40 years, small differences in losses can exceed the initial purchase-price difference. Use a present-value loss evaluation based on the actual hourly load profile rather than comparing nameplate efficiency alone.
Mechanical and short-circuit withstand Verify winding clamping, bracing, impulse forces, transport restraints, seismic requirements, and short-circuit test or design evidence. Withstand requirements must correspond to the calculated fault current and the applicable transformer standard; they are not determined by MVA rating alone. A single severe fault can cause deformation that later develops into insulation failure or partial discharge. Request design verification, routine testing, and a documented short-circuit withstand basis.
Protection and monitoring Define differential, restricted-earth-fault, overcurrent, overfluxing, sudden-pressure, oil-level, temperature, and dissolved-gas monitoring requirements. Alarm and trip settings must be coordinated with transformer thermal limits, protection-clearing time, and the selected standard. Early detection can prevent minor defects from becoming catastrophic failures during a long operating life. Provide a protection cause-and-effect matrix and test all trip circuits before energization.
Testing and documentation Specify ratio, polarity, winding resistance, impedance, losses, insulation resistance, applied-voltage, induced-voltage, partial-discharge where applicable, oil, leak, and functional tests. Tests should comply with the governing IEC 60076 or IEEE C57 series requirements and the project specification. Complete baseline records make future condition assessment and fault investigation more reliable. Make certified test reports, drawings, manuals, spare-parts lists, and commissioning data contract deliverables.
Expected service life and maintenance Evaluate annual loading, hot-spot history, moisture, oxygen exposure, fault events, oil-processing needs, spare-part availability, and planned inspection intervals. A 30–40 year target is achievable only with suitable design margins, controlled temperature and moisture, correct protection, and condition-based maintenance; it is not guaranteed by age alone. Transformer life is governed by cumulative thermal, dielectric, mechanical, and environmental stresses. Approve the transformer together with a lifecycle maintenance plan, condition indicators, inspection triggers, and replacement-risk assessment.
Decision rule: Select the transformer only after the harmonic spectrum, ambient and altitude conditions, thermal hot-spot results, fault duty, voltage regulation needs, and lifecycle maintenance strategy have been validated against the applicable project standard.

FAQS

Why is a tap range important in a step-up transformer?

A ±10% tap range helps manage practical voltage fluctuations. Confirm whether taps work off-circuit or on-load. Off-circuit adjustment requires isolation.

When is an on-load tap changer useful?

It regulates voltage while the transformer remains energized. However, it adds controls, inspections, and maintenance tasks. More convenience, more responsibility.

How should the vector group be selected?

Match it with phase displacement, grounding, protection settings, and parallel operation requirements. Never select one from habit. A drawing can still be wrong.

Which technical tests should the specification require?

Request dielectric tests, temperature-rise results, short-circuit withstand data, noise measurements, and routine inspection records. A compliance statement alone is weak evidence.

What site conditions affect transformer selection?

Record altitude, hourly temperature, sunlight, airflow, and nearby heat sources. A paved yard can become unexpectedly hot. Catalogue ratings may not reflect reality.

How should harmonic loading be assessed?

Measure current distortion, major harmonic orders, and actual load patterns. Drives may increase eddy-current losses beyond the expected kVA. K-factor alone can mislead.

What information supports a 30–40 year service target?

Review hot-spot temperature, top-oil temperature, overload hours, cooling control, moisture, and maintenance records. Forty years may be optimistic.

Which physical details are easy to overlook?

Check oil level, bushing clearances, enclosure sealing, transport restraints, and cooling access. These small details can create large delays. Review them twice.

How should future load growth be handled?

Document expected growth, harmonic assumptions, emergency loading, and cooling capacity. The forecast may be imperfect. That is acceptable if assumptions remain visible.

Conclusion

Choosing a Step-up substation transformer requires careful evaluation of electrical, environmental, and operational requirements. Begin by defining the system voltage ratio, required MVA capacity, and expected demand at a 0.8–0.9 power factor. The transformer’s impedance should typically fall within the 5–15% range, balancing fault-current limitation with acceptable voltage drop. High efficiency, preferably 98% or above, can reduce long-term energy losses, while the appropriate cooling method and insulation or BIL rating must match the installation conditions.

The specification should also include a suitable tap range, such as ±10%, to support voltage regulation, along with the correct vector group for system compatibility. Compliance with IEC 60076 helps establish consistent design and testing expectations. Before final selection, assess harmonic loading, ambient temperature limits, altitude, ventilation, maintenance access, and projected load growth. A properly selected transformer should provide reliable performance and economical operation throughout a planned service life of approximately 30–40 years.
