IEEE C57.12.34 Compliance
Padmount units are designed to exact North American and Philippine utility standards, incorporating dead-front insulated elbow interfaces, tamper-proof penta-bolt doors, and loop-feed switches.
Hermetically Sealed Distribution
Oil-Immersed 3-Phase — Sealed-Type
SOTEK’s sealed-type three-phase oil-immersed distribution transformers feature a corrugated flexible tank design. The expansion fins adjust dynamically with oil temperature changes, completely eliminating the need for an external conservator tank. This compact footprint prevents atmospheric moisture and oxygen ingress into the insulating fluid, drastically extending maintenance intervals and oil service life.
Constructed with high-permeability cold-rolled grain-oriented (CRGO) silicon steel cores and high-purity copper windings, these transformers operate seamlessly on 22 kV and 35 kV distribution grids. Every unit is type-tested in our ISO/IEC 17025 accredited laboratory to meet IEC 60076, IEEE C57, and TCVN 6306 specifications.
| Parameter | Engineering Specification |
|---|---|
| Power Rating | 50 kVA to 21,000 kVA |
| Voltage Class | Up to 69 kV (Delta / Wye options) |
| Cooling Mode | ONAN / ONAF (KNAN ester option) |
| Core Construction | Laser-scribed CRGO steel / Step-lap joint |
| Insulation Medium | High-dielectric mineral oil / FR3 natural ester |
| Standard Compliance | IEC 60076, IEEE C57, TCVN 6306 |
Industrial Substation Grade
Oil-Immersed 3-Phase — Unsealed-Type
SOTEK’s unsealed-type three-phase distribution transformers feature a dedicated conservator (oil expansion) tank mounted above the main unit. This traditional design keeps the main transformer tank completely filled with oil under all temperature conditions while thermal expansion is safely absorbed in the conservator volume.
Equipped with Buchholz gas-operated protection relays for immediate internal fault signaling and silica gel dehydrating breathers to strip incoming ambient humidity, these units are highly favored by electric utilities, heavy mining facilities, and industrial sub-transmission substations.
| Parameter | Engineering Specification |
|---|---|
| Power Rating | Up to 21 MVA |
| Voltage Class | Up to 69 kV |
| Protection Scheme | Buchholz relay, oil level gauge, pressure relief valve |
| Breather System | Dehydrating silica gel air breather |
| Tap Changer | Off-circuit DETC / On-load OLTC switch |
| Standard Compliance | IEC 60076, ANSI C57.12.00 |
70-80% No-Load Loss Reduction

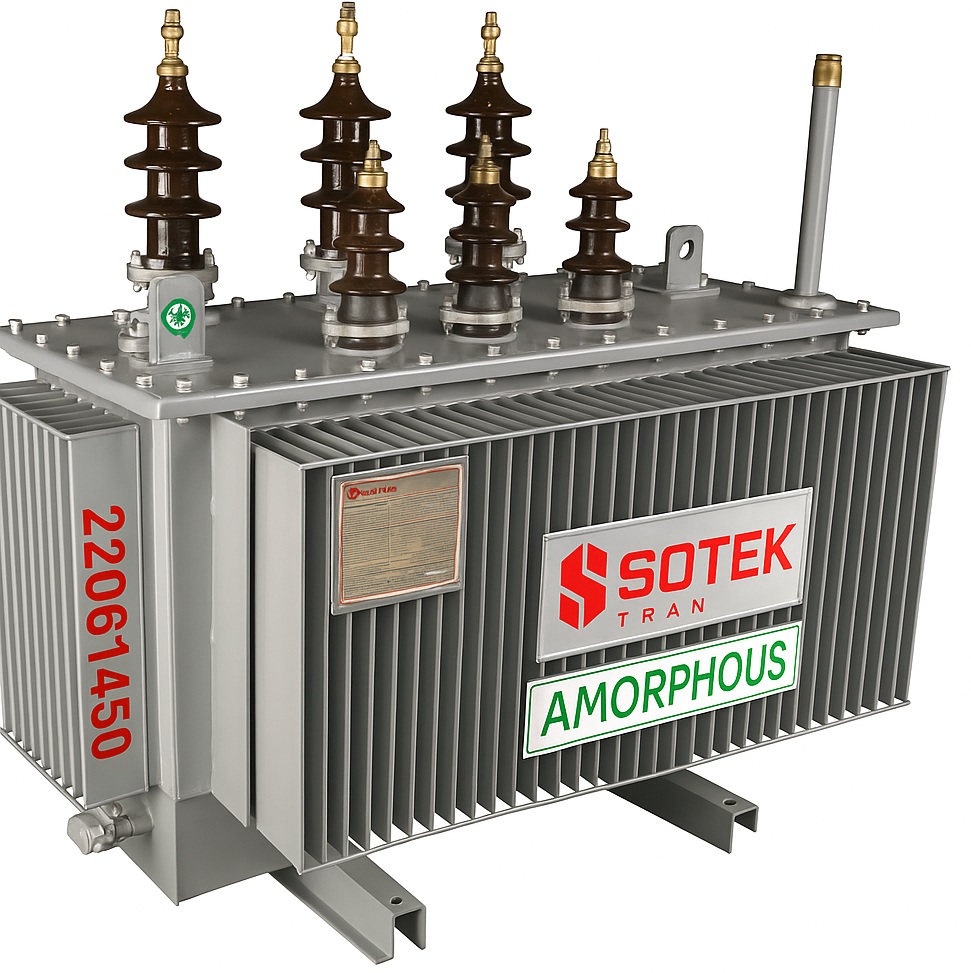

Amorphous Alloy Core — 3 Phase
SOTEK’s three-phase amorphous alloy core distribution transformers represent the pinnacle of eco-friendly grid efficiency. Utilizing a non-crystalline Fe-B-Si ribbon alloy core instead of traditional grain-oriented silicon steel, these units decrease no-load (excitation) losses by up to 80%.
Because distribution transformers remain continuously energized 24/7, this ultra-low loss performance drastically lowers lifecycle operational costs (OPEX) and reduces greenhouse emissions. Ideal for solar power plants, wind farm collectors, microgrids, and green building projects seeking fast ROI payback within 3 to 5 years.
| Parameter | Engineering Specification |
|---|---|
| Power Rating | 50 kVA to 2,500 kVA |
| Core Material | Fe-B-Si Amorphous Alloy Ribbon |
| Energy Savings | 70% – 80% No-load loss reduction vs. CRGO |
| Winding Material | High-grade Electrolytic Copper / Aluminium |
| Applicable Standards | IEC 60076, TCVN 8525 (MEPS compliant) |
Overhead Grid Electrification
Single-Phase Pole-Mount Transformer
Engineered for rural electrification, single-phase residential grids, and overhead utility lines, SOTEK pole-mounted transformers combine compact structural design with superior environmental resistance against tropical, coastal, and severe weather conditions.
Housed in cylindrical mild-steel corrugated tanks with wet-process porcelain primary bushings, these units are equipped with internal pressure relief valves, arrester mounting brackets, and low-impedance wound core loops for high surge withstand capability built to ANSI C57.12.20 standards.
| Parameter | Engineering Specification |
|---|---|
| Capacity Range | 15 kVA to 500 kVA |
| Voltage Class | Up to 40.5 kV class (50/60 Hz) |
| Core Construction | Wound CRGO steel core loop |
| Bushings | Wet-process cover porcelain bushings |
| Safety Features | Pressure relief valve, surge arrester brackets |
| Standard Compliance | ANSI C57.12.20, IEC 60076 |
IEEE C57.12.34 Underground Distribution
Compartment Padmount Transformer
SOTEK pad-mounted transformers are compartmentalized liquid-filled distribution units specifically engineered for underground cable distribution networks in commercial centers, school campuses, industrial parks, and residential subdivisions.
Built in accordance with IEEE C57.12.34 and ANSI C57.12.28 tamper-resistant enclosure specifications, the cabinet features isolated high-voltage and low-voltage cable bays, penta-head lockable doors, dead-front HV elbow connectors, and dual Bay-O-Net fuse overload protection with ELSP current-limiting backing fuses. Available in loop-feed and radial-feed configurations.
| Parameter | Engineering Specification |
|---|---|
| Capacity Range | 75 kVA to 5,000 kVA |
| Voltage Rating | Up to 35 kV class |
| Enclosure Security | ANSI C57.12.28 Tamper-Resistant Cabinet |
| Feed Topology | Loop Feed / Radial Feed |
| High Voltage Interface | Dead-Front Loadbreak Elbow Bushing Inserts |
| Protection Scheme | Bay-O-Net Fuses & Back-up ELSP Fuses |
Grid Engineering Standards & QA
Technical Expertise & Validation
SOTEK transformers are backed by ISO 9001:2015 quality management and accredited type testing performed in our ISO/IEC 17025 (VILAS 1183) testing facility.
ISO/IEC 17025 Certified Lab
Our in-house lab conducts full routine and type tests: dielectric impulse testing, winding resistance, short-circuit withstand verification, and temperature rise tests under full load.
Severe Weather Protection
Multi-layer epoxy polyurethane paint systems withstand 1,000+ hours of salt spray testing (ASTM B117), protecting units in high-humidity coastal and industrial marine environments.
