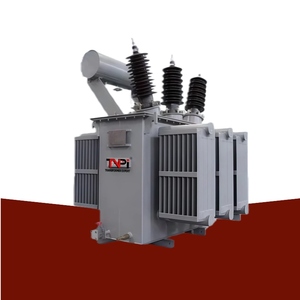

69kV 33kV 10MVA 20MVA 30MVA ONAN Oil Immersed Substation Transformer
Heavy-duty copper winding step-down transformer configured with high-voltage load break switches for utility substations.
Send an InquiryDistribution Transformer Technical Articles, Industry Insights & Grid Updates — SOTEK Group
Product Catalog & Grid Equipment
CE Certified Load Switch & Substation Transformer Units
Engineered for harsh utility environments, renewable energy step-up nodes, and industrial distribution grids. Complete type-test certification with full FAT traceability.

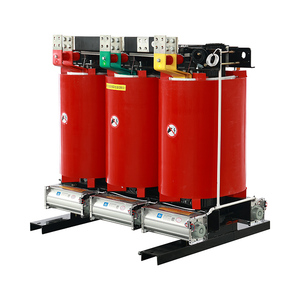

3-Phase 100kVA High Voltage Dry Type Industrial Isolation Transformer
Self-extinguishing Class H insulated dry-type transformer with integrated load switch gear for cleanroom and industrial plant isolation.
Send an Inquiry

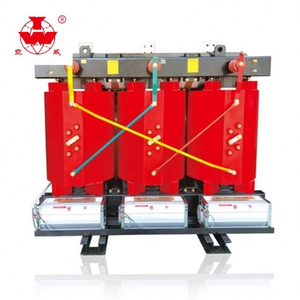

10kV/11kV 500kVA-2500kVA Cast Resin Dry Type Step Down Transformer
Equipped with forced air cooling fans and integrated medium voltage load switches for high-density indoor commercial substations.
Send an Inquiry
CE Certified 35kV to 380V/400V 10kVA-50kVA Step Down 3-Phase Dry Transformer
Precision voltage stepping dry-type unit combined with low-loss load break switching mechanisms for specialized utility applications.
Send an Inquiry
Single Phase 6kV to 220V Honeycomb Dry Type Isolation Power Transformer
Custom high-frequency honeycomb winding layout offering high dielectric strength for dedicated single-phase load switch protection.
Send an Inquiry

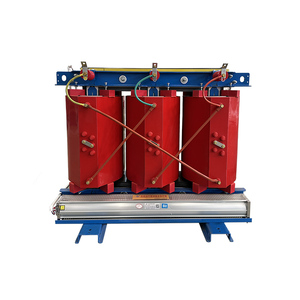

10kV 35kV Three Phase Cast Resin Dry Type Transformer (50Hz/60Hz)
Cost-optimized resin encapsulated transformer designed for seamless integration into SF6-free load break switch gear cabinets.
Send an Inquiry

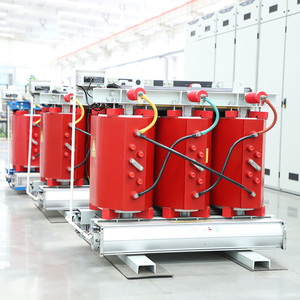

630kVA 20kV to 415V High Voltage Low Loss Dry Type Power Transformer
Ultra-low no-load loss design engineered for urban distribution rings backed by automated load switch trip interlocks.
Send an Inquiry

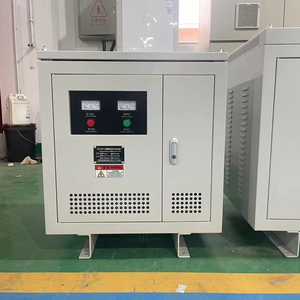

DingXin SG IEC60076 ISO CE Certified 3-Phase 440V to 220V Isolation Transformer
Fully compliant step-down isolation solution with optional integrated load break disconnectors for industrial machine tools.
Send an Inquiry
Industry Whitepaper & Strategic Guide
📄 Architecting Modern Power Grids: The Critical Role of CE Certified Load Switches & Integrated Switchgear
In the rapidly evolving landscape of global electrical distribution, power quality, operational safety, and system resilience have emerged as non-negotiable procurement benchmarks. A CE Certified Load Switch Supplier serves as a pivotal partner for Utility Companies, EPC Contractors, and Industrial Facility Managers who require medium-voltage (MV) load break switches (LBS), ring main units (RMU), and step-down power transformers that withstand aggressive fault currents while meeting stringent European Conformity directives.
100%
CE & IEC 62271 Verified
30+
Global Export Markets
<0.05%
Field Failure Rate
21 MVA
Max Transformer Capacity
Understanding CE Certification Standards in Medium-Voltage Load Switching
CE marking on load break switches is not merely a regulatory rubber stamp; it is a comprehensive validation of structural integrity, electromagnetic compatibility (EMC), and arc-quenching capability under extreme fault scenarios. The European Union standard EN 60265-1 (aligned with international standard IEC 62271-103) stipulates strict performance benchmarks for high-voltage switches rated above 1 kV up to and including 52 kV.
When sourcing from a verified load switch supplier, engineering teams must evaluate three vital parameters:
⚡
Active Load Interrupting Rating
The switch’s capacity to interrupt rated continuous currents repeatedly without contact erosion, dielectric degradation, or phase-to-ground flashover.
🛡️
Short-Circuit Making Capacity
Ability to close safely onto a full short-circuit fault (up to 31.5 kA or 50 kA peak) without structural destruction or operator injury.
🌡️
Dielectric Insulation Resilience
Sustained impulse withstand voltage ratings (e.g., 95kV to 125kV BIL) under humidity, thermal cycling, and high-altitude installation environments.
Technology & Innovation Trends
🚀 Future Product Trends: The Next Generation of Load Switch Engineering
The medium-voltage equipment sector is undergoing a massive paradigm shift driven by decarbonization mandates, grid digitalization, and stringent environmental regulations against fluorinated gases. Suppliers who fail to innovate risk leaving procurement teams with stranded legacy assets.
🌱
1. Transition from SF6 Gas to Clean Air & Solid Insulation
Sulfur Hexafluoride (SF6) has been the traditional dielectric medium of choice due to its superior arc-quenching capability. However, with SF6 carrying a Global Warming Potential (GWP) 23,500 times higher than CO2, regulatory bodies like the EU are actively phasing it out. Leading CE certified load switch suppliers are pioneering Solid Insulated Switchgear (SIS) and Clean Air / Dry Air LBS units. These eco-friendly switches utilize vacuum interrupters combined with epoxy resin encapsulation to achieve zero-emission performance without compromising fault interruption speed.
📡
2. IoT Sensorization & Smart Grid Automation
Modern load break switches are evolving from passive mechanical contactors into intelligent edge devices within Distributed Energy Resource Management Systems (DERMS). Future-proof LBS hardware integrates built-in primary current sensors, capacitive voltage dividers, wireless thermal sensors, and motor-driven actuation mechanisms. This enables remote Feeder Automation (FA), auto-loop reclosing, real-time contact temperature tracking, and predictive maintenance alerts delivered straight to SCADA platforms via IEC 61850 protocol.
⚡
3. Hybrid Switching Mechanisms for Renewable Integration
Solar PV plants, wind farms, and battery energy storage systems (BESS) subject switching devices to frequent switching cycles, high-frequency harmonics, and bi-directional power flows. Next-generation load switches feature hybrid magnetic actuators and advanced contact alloys (such as Copper-Tungsten matrix composites) that extend electrical endurance up to 10,000 operations, drastically reducing maintenance overhead for remote renewable sub-stations.
📦
4. Compact Modular Substation & Transformer Integration
Space constraints in dense urban centers and offshore wind platforms demand radical footprint reduction. Future procurement heavily favors factory-assembled, compact package substations where CE certified load switches, fuse combinations, and cast-resin dry-type or oil-immersed transformers (such as SOTEK's step-down series) are enclosed in a unified, arc-proof steel housing.
Technology Comparison: Traditional SF6 LBS vs. Modern Eco-Friendly Solid-Insulated LBS
| Engineering Parameter | Legacy SF6 Gas Load Switch | Next-Gen Solid Insulated (SIS) LBS | Vacuum / Clean Air Load Switch |
|---|---|---|---|
| Environmental Impact (GWP) | High (GWP = 23,500) | Zero (GWP = 0) | Zero (GWP = 0) |
| Dielectric Medium | Pressurized SF6 Gas | Epoxy Resin Encapsulation | Dry Air / Nitrogen Gas |
| Leakage Risk & Refilling | Requires regular gas density monitoring | Maintenance-Free Solid Core | Hermetically Sealed Vacuum Bottle |
| Mechanical Operations | 2,000 to 5,000 cycles | Up to 10,000 cycles | 5,000 to 10,000 cycles |
| End-of-Life Disposal Cost | Expensive hazardous waste handling | Standard recyclable polymer recycling | 100% Recyclable Metals |
Procurement & Supply Chain Insights
📊 Global Procurement Trends: How Utility Buyer Intent is Shifting
Intent mining across international B2B buyers reveals a decisive departure from lowest-unit-bid procurement toward holistic Total Cost of Ownership (TCO) evaluation, supplier manufacturing capacity verification, and geopolitical supply chain diversification.
1. Geographic Risk Diversification
Global EPCs are expanding supplier portfolios beyond traditional single-country hubs, sourcing actively from high-tech manufacturing nodes in Vietnam and Southeast Asia (such as SOTEK Group) to guarantee delivery timelines and mitigate tariff shocks.
2. Mandatory Type-Test Transparency
Utility buyers now require full lab test reports directly from independent ISO/IEC 17025 accredited facilities (e.g., KEMA, ASTA, QUATEST 1) before issuing RFQ approvals, ensuring verified fault-making capacity.
3. Modular Customization Capabilities
Buyers demand customizable terminal connections, dual-voltage primary windings, and integrated DETC/OLTC tap changers that adapt effortlessly to regional grid configurations without custom redesign delays.
Enterprise Advantage & E-E-A-T Proof
🏭 Why SOTEK Group is Your Trusted CE Certified Load Switch & Transformer Supplier
As an ISO 9001:2015 and ISO 14001:2015 certified manufacturer operating a modern 18,500 m² state-of-the-art facility in Tien Son Industrial Park, Bac Ninh Province, Vietnam, SOTEK Group bridges high-end European engineering precision with competitive export manufacturing economics.
State-of-the-Art Manufacturing & Testing Rigor
Our factory integrates Georg automatic core-cutting lines, automated layer coil winding machinery, Hedrich vacuum casting chambers, and fully robotic tank welding systems. Every batch of load break switches and power transformers (from 50 kVA up to 21,000 kVA / 69 kV class) undergoes rigorous factory acceptance testing (FAT).
- ✔ ISO/IEC 17025 Accredited Laboratory (VILAS 1183 Certification)
- ✔ Full Type-Tested Compliance with IEC 62271-103, IEC 60076, and IEEE C57
- ✔ EVN Approved Vendor across all 5 regional power distribution corporations
- ✔ Global Export Footprint: Supplying utilities across North America, Australia, & SE Asia
Key Manufacturing Capabilities
Plant Area:
18,500 m² Advanced Production Facility
Voltage Classes:
Medium Voltage (10kV, 11kV, 22kV, 35kV) up to High Voltage (69kV)
Product Spectrum:
Load Switches, Dry Type & Oil Transformers, Padmount Units
Incoterms Supported:
FOB Hai Phong Port, CIF Global Sea Ports, DDP
Expert Guidance & Buying FAQ
❓ Frequently Asked Questions for Load Switch Procurement
Technical responses addressing common inquiry points raised by substation design engineers, procurement specialists, and grid operators.
What is the difference between a Load Break Switch (LBS) and a Circuit Breaker?
A Load Break Switch (LBS) is designed to open and close electrical circuits under normal rated operating current conditions (active load). A Circuit Breaker, by contrast, possesses a much higher short-circuit breaking capacity capable of interrupting severe short-circuit fault currents automatically via protective relays. In modern substations, CE certified load break switches are frequently paired with current-limiting fuses to provide economical, full-range short-circuit protection.
Why is CE Certification essential for importing medium-voltage switches into international markets?
CE Certification confirms that the load switch satisfies essential health, safety, and environmental protection requirements established by European Directives (such as Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU). For global buyers outside Europe, CE marking serves as an independent benchmark of high manufacturing quality, safety design, and compliance with IEC standards.
Can SOTEK supply customized load switches integrated with step-down power transformers?
Yes. SOTEK specializes in engineering integrated power distribution solutions. We manufacture compact package substations and padmount units that combine our CE certified load break switches (gas-insulated or solid-insulated) directly with oil-immersed or cast-resin dry-type step-down transformers (ranging from 50 kVA to 21,000 kVA).
What type-test documentation is provided with B2B purchase orders?
Every shipment includes a full Factory Acceptance Test (FAT) dossier covering short-time withstand current tests, lightning impulse voltage withstand tests, dielectric routine tests, temperature rise validation, and mechanical operation verification issued by our ISO/IEC 17025 accredited laboratory. Third-party test reports from KEMA or ASTA are also available upon request.
What are the recommended maintenance intervals for indoor solid-insulated load switches?
Solid-Insulated Load Break Switches (SIS) require minimal routine maintenance due to their sealed epoxy housing and vacuum interrupters. Visual inspections of terminal connections and mechanical linkage lubrication are recommended every 3 to 5 years, or after 2,000 manual/motorized operations under rated load.
Ready to Upgrade Your Grid Infrastructure with CE Certified Load Switches?
Consult with SOTEK’s senior electrical engineering team to request detailed technical datasheets, CAD dimensional drawings, or custom RFQ pricing tailored to your project timeline.
