Featured OEM Three-Phase Equipment
Engineered with high magnetic permeability silicon steel, 100% electrolytic pure copper windings, and vacuum-pressure impregnation for maximum durability.

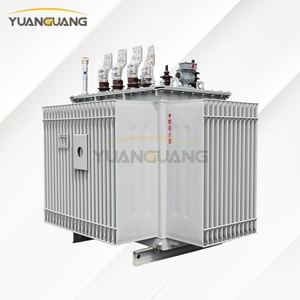

20kV 250kVA–1250kVA Natural Ester 3-Phase Transformer
Fully sealed fluid-immersed transformer designed specifically for solar PV plants. Utilizes biodegradable natural ester liquid with high fire point (Class K).

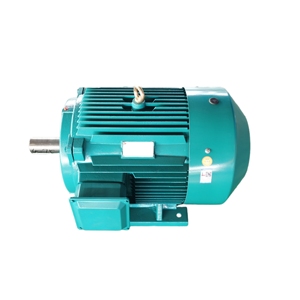

YE3-160L-4 15KW 3-Phase Asynchronous AC Motor
Ultra-efficient squirrel cage motor with 100% pure copper core windings. Delivers low vibration, optimized power factor, and IP55 heavy industrial duty rating.

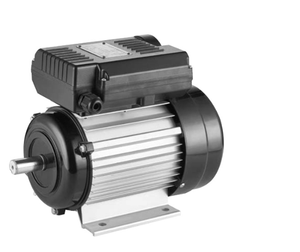

Y2 Series Three Phase Compact Induction Motor
Engineered for general industrial machinery with smooth-start torque curves, lightweight cast-iron housing, and full international standards compliance.

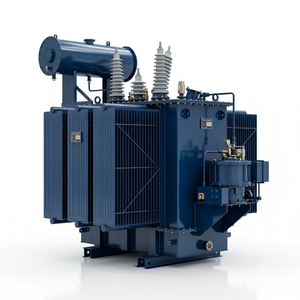

110kV/11kV Three Phase Oil Immersed Power Transformer
Heavy-duty power transformer rated for utility substations, rural grid electrification, and large-scale renewable plants under continuous ONAN cooling.

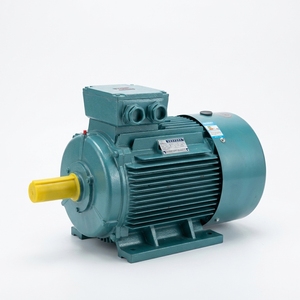

Custom OEM Industrial Three-Phase AC Motors
Tailor-made AC induction motors customizable by frame size, mounting (B3/B5/B14), dual-voltage ratings, and specialized explosion-proof enclosures.

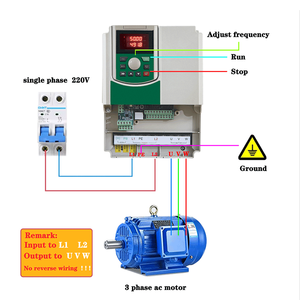

0.75KW to 5.5KW Industrial 3-Phase VFD Inverter
Variable Frequency Converter for precision speed and torque regulation of 380V–440V three-phase motors with advanced PID control and MODBUS communication.

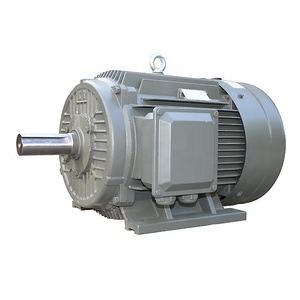

YE3 Series 50Hz Premium 3-Phase AC Motor
Standard high-efficiency 50Hz three-phase motor designed for pumps, fans, compressors, and conveyors with low operating noise and low thermal rise.

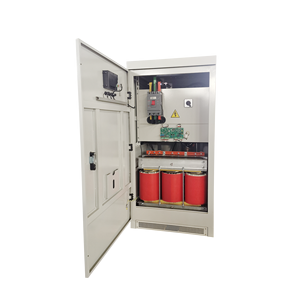

380VAC 3-Phase Voltage Stabilizer & Transformer Unit
All-in-one voltage regulation unit with 2000V insulation withstand strength. Maintains precise output voltage despite grid fluctuations for critical industrial tools.
Engineering OEM Three-Phase Systems: Metallurgy, Thermal Dynamics & Losses
In modern industrial utility environments and continuous-process manufacturing plants, three-phase electrical machinery—encompassing both electromagnetic induction transformers and rotating asynchronous motors—serves as the primary backbone of power transformation and mechanical actuation. The structural integrity and electrical efficiency of custom OEM three-phase systems depend directly on cold-rolled grain-oriented (CRGO) silicon steel core laminations, copper conductor purity, and advanced dielectric insulation materials.
CRGO Core Lamination & Flux Density
Utilizing high-grade M0H and M1H laser-scribed silicon steel sheets allows our three-phase transformers to operate at peak flux densities between 1.65T and 1.72T while drastically reducing hysteresis losses. Precision Georg step-lap automated core cutting minimizes no-load loss currents by up to 28% compared to standard M4 laminations.
Thermal Dissipation & Insulation Classes
Thermal management dictates equipment operational lifespan according to Arrhenius' Law. Our custom motors and transformers incorporate Class F (155°C) and Class H (180°C) insulation systems utilizing Nomex papers and high-solids polyester varnishes applied via automated Vacuum Pressure Impregnation (VPI) cycles to eliminate micro-voids.
When procuring three-phase machinery, original equipment manufacturers (OEMs) must evaluate the total loss equation: Total Losses = No-Load Losses (P0) + Load Losses (Pk) at rated operating temperature. Custom winding geometry—such as continuous disc windings for high-voltage power transformers or multi-strand rectangular wire in induction motor stators—optimizes spatial copper fill factors and minimizes stray eddy current losses induced by high-frequency harmonics.
Technical Insight on Energy Losses: Transitioning from standard IE2 motor platforms to OEM YE3 (IE3) or IE4 ultra-premium copper-core motors reduces total operational power loss by up to 14%. For 24/7 continuous process plants, the energy savings offset the capital cost difference within 8 to 14 months of deployment.
Strategic Procurement Trends in Global Three-Phase Equipment Sourcing
The global procurement landscape for industrial three-phase equipment is undergoing a structural paradigm shift driven by three primary vectors: grid decarbonization mandates, total cost of ownership (TCO) evaluation metrics, and supply chain regionalization. Procurement officers and EPC engineering managers are no longer prioritizing initial purchase price over long-term reliability and efficiency compliance.
Ester Fluid Transition
Global utilities are replacing mineral oil with natural and synthetic ester fluids (e.g., FR3). Ester fluids offer a fire point of >300°C (Class K fire safety) and superior biodegradability, enabling smaller substation footprints and reduced environmental containment costs.
Strict Efficiency Mandates
Regulations such as the EU EcoDesign Directive Tier 2 and US DOE 2016 efficiency limits make ultra-low loss designs mandatory. Suppliers must provide certified loss verification reports audited by independent ISO/IEC 17025 accredited facilities.
Custom OEM Flexibility
Engineering buyers increasingly demand specialized mechanical layouts: dual-voltage primary taps (e.g., 11kV/22kV switchable), custom shaft extensions, tropicalized moisture isolation, and integrated VFD-duty insulation systems.
Total Cost of Ownership (TCO) Procurement Formula: Strategic B2B buyers evaluate suppliers using life-cycle capitalized loss evaluation formulas:
*Where A and B represent utility energy valuation factors over a 25-to-30-year operational horizon ($/kW).
By leveraging advanced core manufacturing and high-slot fill factor motor winding technology, our custom manufactured 3-phase machinery delivers significantly lower 'A' and 'B' loss values, translating to substantial lifetime savings for project operators.
Next-Generation Development Trends in 3-Phase Manufacturing
The convergence of power electronics, smart grid telemetric sensors, and advanced materials engineering is redefining the performance capabilities of modern three-phase apparatus. Key development vectors include:
-
1
Amorphous Metal Alloy Cores: Replacing crystalline CRGO silicon steel with non-crystalline amorphous alloy ribbon reduces core loss by up to 70–80%. Amorphous transformer technology is rapidly expanding from residential distribution grids into utility-scale solar and wind farms.
-
2
Smart Grid IoT Integration & Digital Twins: Integration of embedded Fiber-Optic Temperature Sensors (FOTS), dissolved gas analysis (DGA) monitors, and real-time vibration telemetry allows three-phase transformers and heavy motors to stream predictive maintenance analytics directly to SCADA and cloud platforms.
-
3
VFD-Optimized Inverter-Duty Motors: With variable frequency drives (VFDs) becoming standard across industrial speed control, modern motor stators feature reinforced corona-resistant magnet wire (Class H) and insulated bearings (ceramic hybrid) to prevent shaft current pitting caused by high dv/dt voltage spikes.
Frequently Asked Technical Questions
Direct technical insights for engineering procurement leads, electrical contractors, and utility project managers.
State-of-the-Art Factory & Engineering Infrastructure
Integrating modern German technology lines, ISO 9001:2015 quality controls, and comprehensive testing laboratories.
Automatic Georg Cutting Lines
Equipped with precision German Georg step-lap core cutting machinery, ensuring micro-level burr tolerances (<0.02mm) and optimized core magnetic alignment for reduced iron loss.
Hedrich Vacuum Casting Chambers
Cast resin dry-type transformers are encapsulated inside advanced Hedrich computer-controlled vacuum casting systems, maintaining partial discharge levels below 5pC.
ISO/IEC 17025 Certified Lab
Our in-house VILAS 1183 testing laboratory conducts high-voltage impulse testing, power loss measurement, and automated thermal performance profiling with complete traceability.
EVN & Global Utility Vendor
Approved supplier for all 5 EVN regional distribution networks and major international power conglomerates (e.g., Aboitiz Power), demonstrating high grid operational stability.
18,500 m² Modern Production Plant
Operating a massive manufacturing facility in Tien Son Industrial Zone equipped with automated corrugated tank welding robots and dust-free winding clean rooms.
Complete B2B Export Logistics
Seamless export execution across 30+ countries, offering flexible FOB, CIF, or DDP delivery terms with customized seaworthy wooden crate packaging and anti-vibration securing.
Partner with a Leading Custom 3-Phase OEM Exporter
Submit your single-line diagrams (SLD), motor duty specs, or bid tender parameters to our technical engineering team for instant B2B pricing and CAD drawings.
