Featured Pole-Mounted Distribution Transformers
Explore our premier line of overhead single-phase and three-phase pole-mounted transformers. Precision-engineered for utility rural grid extension, urban electrification, commercial substations, and harsh industrial environments.

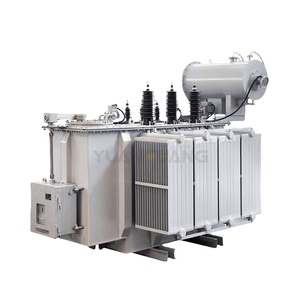

35kV 2.5MVA–7.5MVA IEC OLTC Amorphous Core Three-Phase Transformer

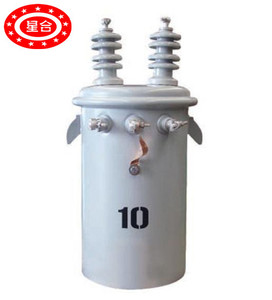

15kVA–50kVA Single Phase Pole Mounted Overhead Distribution Transformer

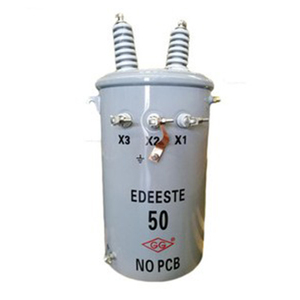

37.5kVA–200kVA Three Phase Overhead Power Transformer ONAN S11

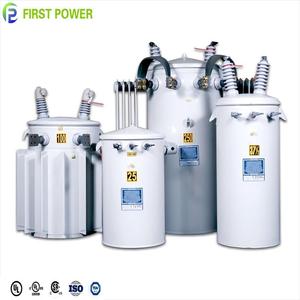

30kVA–167kVA 6kV–20kV Single Phase Industrial Pole Mounted Transformer

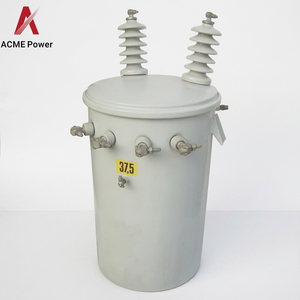

Latin America Grid Standard 25kVA Single Phase Transformer (6.3kV to 110V)

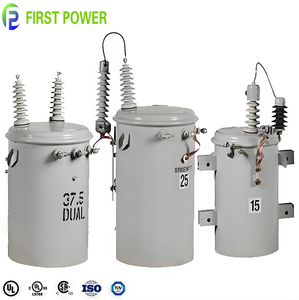

ANSI 25kVA–250kVA 13.8kV Single Phase Overhead Distribution Transformer
ANSI 15kVA–100kVA Multi-Voltage (6kV–35kV) Pole Mounted Transformer

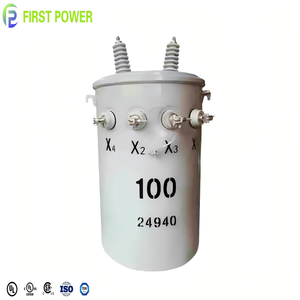

ANSI D11 Type 15kVA–100kVA 11kV Overhead Rural Distribution Transformer
Engineering Excellence from Vietnam’s Premier Substation Hub
Operating from an 18,500 m² state-of-the-art facility in Tien Son Industrial Park (Bac Ninh Province, Vietnam), SOTEK Group sets the global benchmark for pole-mounted and medium-voltage distribution transformer design.
Georg Precision Core Cutting
Utilizing German-engineered Georg fully automated laser core cutting lines, we achieve ultra-precise step-lap core stacking. This minimizes magnetic flux leakage, reduces mechanical vibration, and lowers no-load noise by up to 8 dB(A) compared to standard core assembly.
Amorphous Alloy Metallurgy
Our non-crystalline Fe-B-Si amorphous alloy ribbon cores eliminate grain boundary resistance, reducing no-load losses (hysteresis loss) by 70% to 80% versus traditional High-Grade CRGO silicon steel, providing massive lifetime operational expenditure (OPEX) savings for electric utilities.
ISO/IEC 17025 Accredited Testing
Every transformer batch undergoes 100% routine testing at our VILAS 1183 certified laboratory. We perform full lightning impulse testing (up to 200kV BIL), short-circuit withstand thermal verification, winding resistance measurements, and Dissolved Gas Analysis (DGA).
Thermal & Insulation Integrity
Built using thermally upgraded diamond-patterned Kraft insulation paper and high-dielectric mineral oils (or biodegradable Cargill FR3 natural ester fluid). Vacuum pressure impregnation (VPI) ensures complete moisture evacuation and zero partial discharge.
Severe Environment Coating (C5-M)
Designed for harsh coastal, humid tropical, and high-salinity island environments. Our tanks undergo automated shot-blasting followed by multi-layer epoxy powder coating or hot-dip galvanizing, passing 1,500-hour salt spray corrosion tests (ISO 12944 C5-M high rating).
Utility OEM / ODM Customization
We engineer transformers tailored strictly to utility standards across LATAM, North America, Southeast Asia (EVN, Aboitiz Power), and Africa. Features include customizable bushing arrangements, dual HV voltage taps, pressure relief valves, and pole-mounting brackets.
Global Overhead Pole Transformer Trends (2025–2035)
As national grids transition toward decarbonization, microgrids, and decentralized renewable integration, procurement directors must evaluate technical evolution beyond baseline unit purchase costs.
1. Mandated Eco-Design Efficiency & Low-Loss Standards
Utilities worldwide are aligning with stricter energy loss regulations, such as US Department of Energy (DOE 2026) distribution transformer standards and EU Eco-design Tier 2 specs. High-loss legacy silicon transformers are rapidly being phase-out.
Procurement Impact: Sourcing managers are prioritizing amorphous core transformers and ultra-low-loss CRGO grades (M0H / 0.20mm thick) to prevent grid regulatory penalties and reduce carbon footprints.
Decarbonization Driver
Replacing 100,000 legacy distribution transformers with amorphous alloy units reduces global CO₂ emissions by over 120,000 metric tons annually—equivalent to taking 26,000 passenger vehicles off the road.
Biodegradable Natural Esters
Vegetable-based natural ester fluids (e.g., Cargill FR3) offer a fire point of >300°C (Class K fluid) vs 140°C for mineral oil. Natural ester extends insulation paper lifespan by a factor of 5 to 8 due to its superior water-absorbing capability.
2. Smart Grid IoT Integration & Natural Ester Safety
Modern pole transformers are shifting from passive grid assets to active digital nodes. Integrated optical fiber temperature sensors, wireless pressure monitoring sensors, and automated fault indicators enable real-time operational feedback.
Procurement Impact: Modern RFQs increasingly request FR3 ester fluid readiness and smart bushing sensor integration to prevent catastrophic wildfires and reduce physical inspection overheads.
Technical Core Material Comparison: Amorphous Alloy vs. Cold-Rolled Grain-Oriented Steel (CRGO)
| Technical Parameter | Amorphous Alloy (Fe-B-Si) | High-Grade CRGO Steel (M3/M4) | Procurement Benefit |
|---|---|---|---|
| Material Thickness | 0.025 mm (Ultra-Thin) | 0.23 mm - 0.30 mm | 90% reduction in eddy current loss |
| No-Load Loss (W/kg @ 50Hz) | 0.20 - 0.25 W/kg | 0.85 - 1.10 W/kg | 70-80% lower continuous grid loss |
| Saturation Induction (Bs) | 1.56 Tesla | 2.03 Tesla | CRGO allows slightly more compact core footprint |
| Coercive Force (Hc) | 2.4 A/m (Ultra-Low) | 4.0 A/m | Lower magnetic hysteresis loop loss |
| Operating Temperature Limit | 150°C continuous | 130°C continuous | Amorphous exhibits higher thermal stability |
| 30-Year Total Cost of Ownership | Lowest (High Energy ROI) | Moderate (Higher Grid OPEX) | Amorphous pays back premium within 2-4 years |
Total Cost of Ownership (TCO) Calculation for Utility Buyers
Leading utility procurement teams evaluate pole transformers based on Total Cost of Ownership (TCO) rather than capital bid price alone. The loss evaluation formula ensures optimized long-term investment.
Note: Because Factor A is typically rated between $4.00 to $9.00 per Watt by public utilities, selecting an SOTEK Amorphous Core Pole Transformer (which reduces P0 from 120W to 32W on a 50kVA unit) saves over $600 USD per transformer in lifetime energy loss cost!
Pole Transformer Sourcing FAQ
Answers to common engineering, compliance, and international logistics questions submitted by utility buyers and EPC contractors.
Q What technical standards do SOTEK pole transformers comply with?
Our pole-mounted transformers are engineered fully compliant with ANSI C57.12.20, IEEE C57.12.00, IEC 60076, and regional utility standards such as TCVN 6306 and EVN criteria. We supply both single-phase (15kVA–167kVA) overhead units and three-phase (30kVA–500kVA) distribution transformers.
Q What is the difference between single-bushing and double-bushing pole transformers?
Single-bushing (1 HV Bushing) pole transformers are designed for grounded wye (Y-grounded) single-wire earth return (SWER) distribution systems where the secondary end of the primary winding is internally grounded to the tank wall. Double-bushing (2 HV Bushings) units are used on ungrounded or delta distribution systems requiring dual line-to-line primary phase connections.
Q How does SOTEK ensure anti-corrosion protection for coastal orders?
For severe coastal or tropical island deployments (ISO 12944 C5-M high corrosion class), we offer stainless steel tanks (304 grade or 316L) or heavy-duty hot-dip galvanized tanks with a 3-layer epoxy polyurethane paint system exceeding 250 microns dry film thickness (DFT), tested for 1,500 hours in salt spray chambers.
Q What is the lead time for mass utility RFQ orders?
Standard prototype production and design validation require 2 to 3 weeks. Mass production capacity at our Bac Ninh facility exceeds 2,500 units per month, delivering standard containerized orders within 30 to 45 days FOB Hai Phong port or CIF to worldwide destination ports.
Q Can SOTEK transformers be filled with synthetic or natural ester fluid?
Yes. While high-grade mineral oil (IEC 60296 / ASTM D3487) is standard, we frequently supply units vacuum-filled with biodegradable natural ester fluids (e.g., Cargill FR3 or MIDEL 1204). Ester fluids increase fire safety (K-class fluid >300°C fire point) and extend paper insulation service life.
Q What factory inspection and testing documentation is provided?
Every shipment includes a certified Factory Acceptance Test (FAT) report from our ISO/IEC 17025 accredited laboratory, containing winding resistance, voltage ratio, phase displacement, no-load loss, load loss, short-circuit impedance, dielectric withstand, and impulse test reports.
Partner with a Leading Pole Transformer Manufacturer
Need custom voltage ratios, ANSI/IEEE design compliance, or rapid-turnaround pricing for utility tenders? Contact our Senior Electrical Engineering Team in Bac Ninh, Vietnam for immediate technical assistance and factory-direct quotation.
