Export-Grade Solar Power Transformers for Kazakhstan
Custom-engineered oil-immersed, dry-type, and compact box-type transformers designed for Central Asia's utility-scale photovoltaic plants and distributed renewable networks.

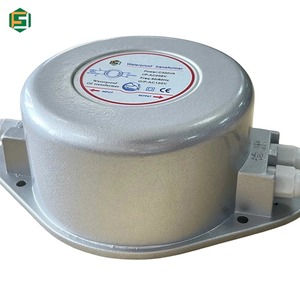

Toroidal Transformer 1000W 12V IP67 Waterproof for Solar Pooling
Compact low-voltage auxiliary transformer engineered with IP67 sealed enclosure for solar array tracking controls and perimeter pool power.

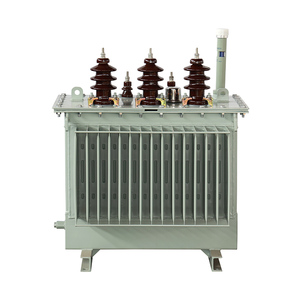

Ampereon HV 11kV / 13.8kV Oil-Immersed Solar Power Transformer
ONAN natural oil cooling step-up transformer designed for continuous heavy loads in extreme diurnal temperature variations.

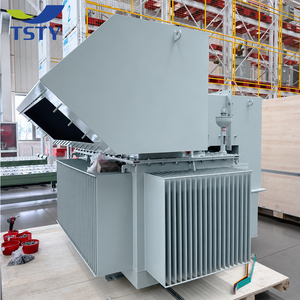

Wholesale Solar Step-Up Transformer 33kV/0.4kV 2000kVA
Utility-scale photovoltaic inverter step-up transformer converting low LV inverter output directly to 33kV regional grid level.

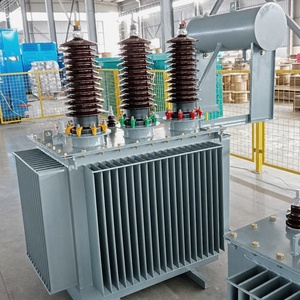

S13 3-Phase 30kVA-2500kVA 35kV/33kV Photovoltaic Transformer
Ultra-low loss S13 series featuring stacked CRGO core, harmonic isolation windings, and wide multi-tap voltage switching capabilities.

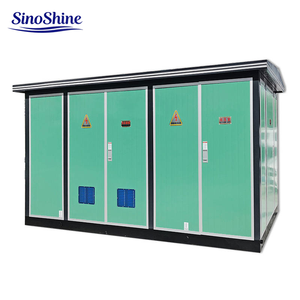

Outdoor Prefabricated Photovoltaic Box-Type Substation Kiosk
Integrated outdoor weather-proof kiosk combining step-up transformer, high-voltage ring main unit (RMU), and LV breaker panel.

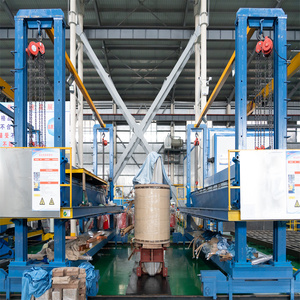

Heavy Utility 20MVA - 40MVA 66kV Substation Transformer
High-capacity main collector transformer bridging large-scale solar arrays to 66kV high-voltage transmission interconnects.

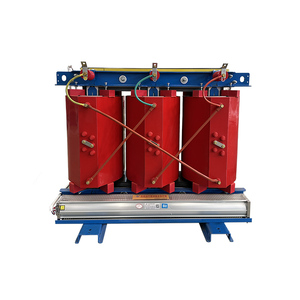

1000kVA 10kV Cast Resin Dry-Type Solar Inverter Transformer
Flame-retardant Class H insulated epoxy cast-resin dry-type unit engineered for indoor solar inverter shelters and severe dusty environments.
69kV / 33kV 10MVA-30MVA Copper Winding Substation Power Transformer
100% electrolytic copper conductor power transformer built for high short-circuit withstand capacity and long service life under cyclic solar loading.
Solar Energy Expansion in Kazakhstan: Technical Requirements for Grid Step-Up Transformers
As the largest economy in Central Asia, Kazakhstan is undergoing a massive structural transition toward renewable energy under its "Concept for Transition to Green Economy 2030/2050". With average solar irradiance ranging between 2,200 and 3,000 sun hours per year—particularly in southern oblasts such as Kyzylorda, Turkestan, Zhambyl, and Almaty—the nation has become an international hub for utility-scale solar photovoltaic (PV) deployment.
However, connecting gigawatt-scale solar parks to the national grid managed by KEGOC (Kazakhstan Electricity Grid Operating Company) presents unique engineering challenges. Solar transformers act as the critical power conversion nexus between PV solar inverter stations and medium-to-high voltage transmission lines (10kV, 35kV, 110kV, 220kV). Ensuring long-term operational uptime requires transformers specifically customized for Central Asia's climate extremes, high dust loads, and strict GOST-R / ST-RK regulatory frameworks.
Localized Engineering: Adapting Transformers for Kazakhstan's Extreme Climate
Kazakhstan's climate is defined by an extreme continental regime. Temperatures in northern and central steppe regions (such as Karaganda and Akmola) plunge to -45°C in winter, while summer temperatures in southern desert zones easily top +45°C. These massive thermal swings generate severe mechanical stress on transformer structural seals, winding insulation, and dielectric liquids.
1. Low Pour-Point Dielectric Fluids & Cold Seals
Standard mineral oils solidify or gel at extreme low temperatures, impairing natural thermo-siphon cooling (ONAN) and causing dangerous internal flashovers during cold-start conditions. Our transformers exported to Kazakhstan utilize specialized naphthenic mineral oils or synthetic ester fluids (e.g., FR3) with pour points below -50°C. Furthermore, seal integrity is preserved using high-performance HNBR (Hydrogenated Nitrile Butadiene Rubber) gaskets that resist cold embrittlement and UV radiation.
2. Steppe Dust Storm & Snow Loading Resilience
The Kazakh steppe experiences frequent high-velocity winds carrying fine quartz dust (alkaline sand from dried salt lakes) and heavy winter snow accumulation. Outdoor prefabricated compact box-type substations are built with IP54 or IP65 protection ratings, equipped with heavy-gauge corrugated steel or stainless steel tanks treated with C4-H / C5-M anti-corrosion paint coatings to prevent rust and mechanical wear.
3. High Altitude & Solar UV Degradation Prevention
Solar projects located in foothill regions like Almaty and Zhambyl operate at elevations exceeding 1,000 to 1,500 meters above sea level. Thinner air reduces dielectric strength and thermal dissipation efficiency. We engineer extended creepage distance bushings (up to 31mm/kV) and apply thermal de-rating factors in accordance with IEC 60076-2 to prevent flashovers and overheating at high altitudes.
Key Engineering Modules for Kazakhstan Solar Grid Integration
Designed from the ground up to solve inverter harmonic stress, thermal expansion, and remote monitoring requirements.
K-Factor & Harmonic Mitigation
Solar inverters generate high-frequency total harmonic distortion (THD). Our transformers feature special electrostatic shielding between primary and secondary windings, K-13 rated insulation systems, and low-loss CRGO steel to prevent core saturation and localized hot-spot formation.
Multi-Winding Inverter Integration
To reduce balance-of-plant (BOP) costs for 3.125MW and 6.25MW central inverter blocks, our step-up transformers support dual or quad low-voltage input windings (e.g., 0.61kV / 0.69kV to 35kV), allowing direct connection of multiple solar inverters to a single transformer unit.
Smart SCADA & Remote Monitoring
Equipped with micro-processor temperature controllers, oil level indicators with dry contacts, gas-actuated Buchholz relays, and RS485 Modbus communications interface, enabling full telemetry integration into local and KEGOC SCADA control rooms.
Solar Transformer Specifications for Central Asian Grids
| Technical Parameter | Oil-Immersed Step-Up Transformer | Cast Resin Dry-Type Transformer | Prefabricated Box Substation |
|---|---|---|---|
| Rated Capacity (kVA) | 500 kVA – 40,000 kVA (40 MVA) | 100 kVA – 3,150 kVA | 1,000 kVA – 6,300 kVA |
| Primary Voltage (HV) | 10kV, 20kV, 33kV, 35kV, 66kV, 110kV | 6kV, 10kV, 20kV, 35kV | 10kV, 20kV, 35kV |
| Secondary Voltage (LV) | 0.315kV, 0.4kV, 0.6kV, 0.69kV, 0.8kV | 0.4kV, 0.69kV, 0.8kV | 0.4kV, 0.69kV, 0.8kV |
| Ambient Operating Temp | -50°C to +55°C (Extended Extreme Range) | -25°C to +45°C (Indoor/Enclosed) | -45°C to +50°C (Outdoor Steppe) |
| Cooling Method | ONAN / ONAF (Synthetic Ester / Mineral Oil) | AN / AF (Air Natural / Forced) | ONAN / Air Duct Venting |
| International Standards | IEC 60076, GOST 11677, IEEE C57 | IEC 60076-11, GOST R | IEC 62271-202, ST-RK GOST |
| Enclosure Protection | Hermetically Sealed / Conservator Tank | IP20 / IP23 Metal Enclosure | IP54 / IP65 Modular Kiosk |
Why Leading EPC Contractors Partner With Us
We provide full-spectrum engineering, manufacturing, and trade support tailored specifically for Central Asian logistics corridors and project finance requirements.
- Quality Assurance: ISO 9001:2015, ISO 14001, and ISO 45001 certified manufacturing plants with automated Georg core cutting and Hedrich vacuum drying facilities.
- Complete Type Test Verification: Full type tests including Short-Circuit Withstand, Lightning Impulse (up to 400kV), and Temperature Rise conducted at accredited laboratories.
- Custom GOST & ST-RK Documentation: Technical datasheets, CAD assembly drawings, and instruction manuals delivered in both English and Russian.
- Khorgos / Alashankou Logistics Corridor: Fast direct rail and truck freight routes from manufacturing plants directly to Almaty, Astana, Shymkent, and Aksu.
Ready to Engineer Your Solar Project in Kazakhstan?
Get direct technical support from our senior transformer design team. We offer bid-stage engineering consultation, official RFQ proposals, and custom CAD drawings within 24 hours.
Inquire NowFrequently Asked Questions by Kazakhstan Buyers
Direct technical and commercial answers for energy developers, procurement officers, and electrical design engineers.
Q1: Do your transformers comply with Kazakhstan GOST and ST-RK standards?
Yes. All transformers exported to Kazakhstan are engineered to conform with both international IEC 60076 standards and regional GOST 11677 / GOST R requirements. We provide full technical passports, certificates of conformity, and test reports in Russian to facilitate smooth grid approval with KEGOC and local regional distribution companies (REKs).
Q2: How do your oil-filled transformers prevent freezing and seal failure during winter (-45°C)?
We utilize specialized low-viscosity transformer oil with a pour point below -50°C and a high flash point. The structural sealing gaskets are composed of cold-resistant HNBR rubber, which retains elasticity down to -55°C, preventing oil leakage caused by thermal contraction during severe winter freezes.
Q3: What is the typical lead time and shipping route to Kazakhstan?
Manufacturing lead times typically range from 4 to 6 weeks depending on voltage class and customization. Freight is dispatched via direct rail express (China-Europe freight train) or heavy truck logistics through the Khorgos or Alashankou border ports, reaching major Kazakh destinations (Almaty, Astana, Karaganda) in 10 to 15 days.
Q4: Can you manufacture multi-winding step-up transformers for central solar inverters?
Yes. We specialize in dual-LV and quad-LV winding transformers (e.g., 33kV to 2x0.69kV or 2x0.8kV) designed specifically to connect multiple string or central PV inverters to a single transformer unit, optimizing system efficiency and reducing plant balance-of-system cost.
Q5: What on-site technical support and warranty services do you provide?
We offer a standard 24-month operational warranty (extendable to 36 or 60 months). For major utility-scale projects, our Central Asia technical team provides remote or on-site supervision for installation, vacuum oil filling, cold-commissioning, and FAT/SAT testing support.
Q6: How do you mitigate harmonic heating caused by solar inverter output?
Our solar transformers feature custom K-Factor rated design parameters (K-9, K-13). We utilize low-loss high-permeability CRGO silicon steel, reinforced copper conductors, and grounded electrostatic shields between the primary and secondary windings to bypass high-frequency inverter harmonics cleanly to ground.
